RFM-104D

RFM-104D

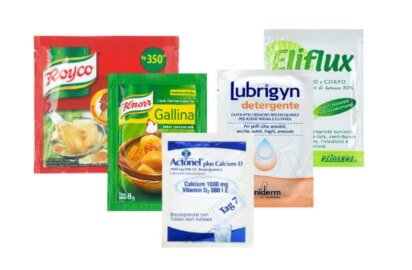

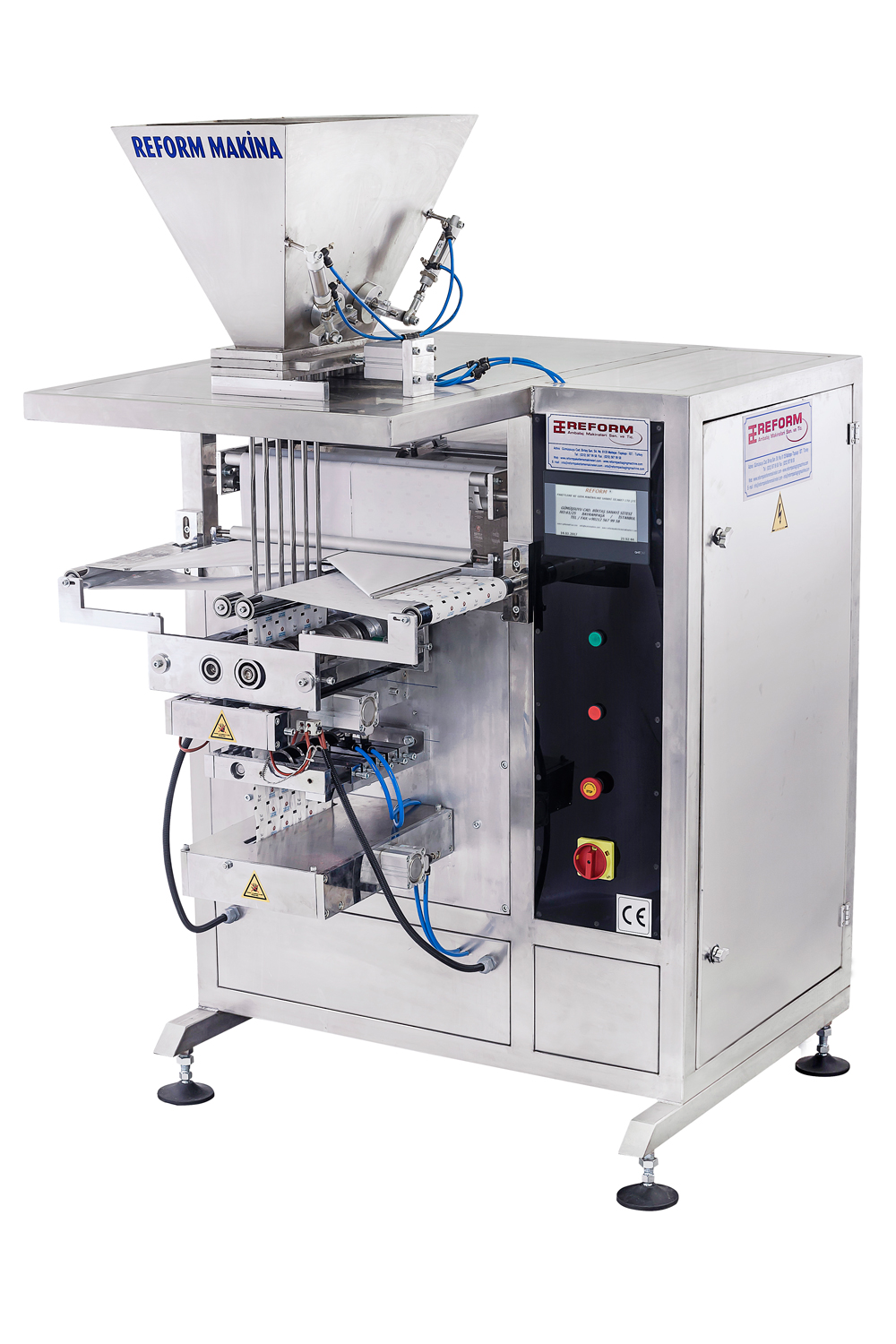

Sachet Packing Machine For Powder Products:

Reform’s Sachet Packing Machine For Powder Products is designed to pack non-free flowing products, Such as coffee cream, 3in1 coffee, cacao, powdery chemicals…etc. With a high speed, performance, and precision. It is insured by an Auger Filling System driven by a Servomotor. Each lane is equipped with a Servomotor, which makes the weight very accurate. The changes of weights can be made for each lane separately (Eample: we have a 5 lanes machine and the third lane gives a different weight from the other lanes, from the touch screen the operator can adjust the weight of the third lane without touching the others). The Sachet Packing machine for powder products does the forming, the packing in 4 side Seal Square or Rectangular shaped sachet. The speed of the machine varies between 25 and 480 Sachet/min.

Why you should choose Reform’s Sachet Packaging Machine For Powder Products:

»Our sachet packaging machines for non-free flowing products are manufactured under the European Economic Area standards (CE certificated) to give a high quality outgoing sachets.
»A 2 years guarantee is offered that covers all electric, pneumatic, and mechanic parts.
»Our after sales services team provide to the client all the support needed to solve any issue to keep the machine running.
»Every machine is equipped by SIEMENS PLC control system and 7 inch colored touch screen.
»The body of the machine is made from stainless steel SS304, the internal parts that have contact with the product are made from stainless steel SS316.
»All Reform’s machines have been designed to run 24/7.
»Reform’s machines give Perfect results with low consumption of Energy and Air.
»Low maintenance and low operating cost.


RFM-104D TECHNICAL SPECIFICATIONS
Weight Range 1 – 15 GR (Adjustable)
Sachet Width 25 – 180 mm (Prefixed)
Sachet Length 30 – 280 mm (Adjustable)
Number of Lines 2 – 3 – 4 – 5 – 6 and 8 Lines
Speed Min : 25 – 60 Sachet/min – Max : 200 – 480 Sachet/min
Applications Suitable for packing powdered products non-free flowing products, such as coffee cream, 3in1 coffee, cacao, powdery chemicals, Drugs…etc

All the specifications of the machine depend on the product, the filling quantity, and the packaging material quality.

Manipulation of the Sachet Packing Machine For Powder Product:

»Reform provides the installation of the machine and a free training. When the machine arrive to the clients site, and after preparing the electricity and air compressor needed to run the machine, we will send a technician to do the installation of the machine, and give a training on how to run the machine.
»Generally, the process takes two to three days.

What Is The Price Of the 4 Side Seal Sachet Machine for powder products:

There is no specific answer to this question because the price of the machine depends on the number of lines, and the option added to the machine, so the more your machine is customized the more you expect to pay.



Optional Features

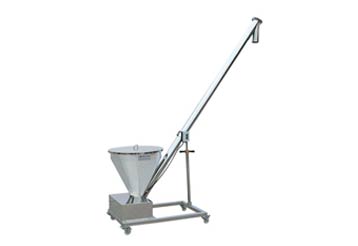

The Automatic Feeding System

The Automatic Feeding System
This equipment ensures the filling of the machine automatically with product. The machine is equipped with a level sensor in the Hopper, so when the level of the product decreases in the hopper the level sensor gives a signal to the PLC, which gives the order to The Automatic Feeding System to get to work and fill the hopper with the product.

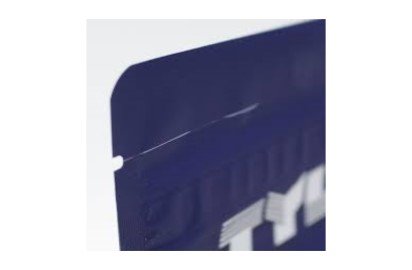

V-Notch

V-Notch
A notch made on the top of the sachet to make the opening easy for the consumer.

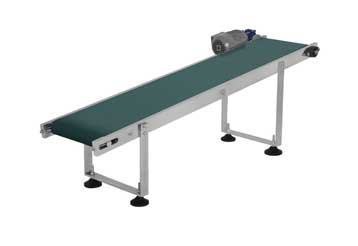

The Conveyor Belt

The Conveyor Belt
This equipment is used to transport the finished product (the Sachets) from the machine to the box or another section after the packaging process.

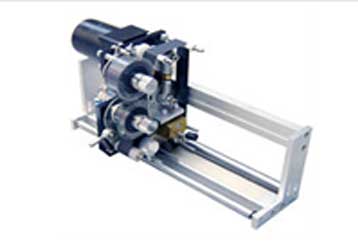

The Ribbon Date Coding System

The Ribbon Date Coding System

Automatic One-Line system, with High Speed Coding works on various packaging machines. The message to be printed is the manufacturing and expiration date maybe the number of lot. The date coder easily composed by just assembling the stereos (easily changeable) on to the print drum. The Inking system consists of a rechargeable circular cartridge; fully enclosed allowing the use of fast-drying & indelible solvent-based inks for porous and non-porous surfaces. The whole assembly is mounting directly on the packaging machine and the packaging film passes over the roller of the bracket.

The PLC or controller takes the signal from the print sensor proximity or eye mark sensor & gives signal to the DC Stepper Motor to turn the print drum automatically at the synchronized speed with the film to do the coding/printing at the exact location.

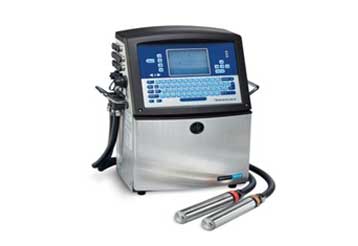

Inkjet Date Coding Machine

Inkjet Date Coding Machine
Designed for low duty applications. The Inkjet coding machines the perfect product to fulfill applications that involve printing codes 8 to 10 hours per day / 5 days a week. The printer is engineer to keep your line up and running longer. It is design for customers with simple coding needs and is ideal for the food, beverage, and chemicals, pharmaceuticals, and personal care/cosmetics industries.3040/5570 Thermal transfer printer: You can print on a package the production date, expiry date and serial number in a 30X40 mm/ 5570 mm printing area. The fonts and the sizes of the letters can be change via computer. It changes the date automatically
